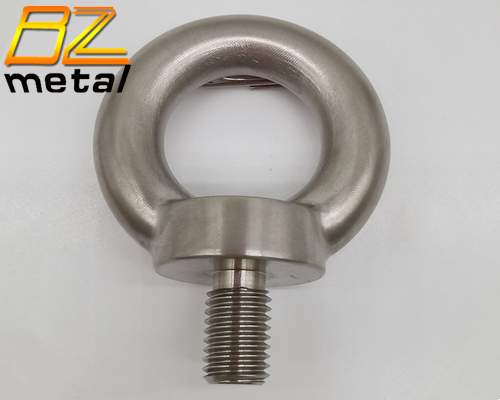

High Quality Titanium Alloy Eye Bolt by CNC Machined

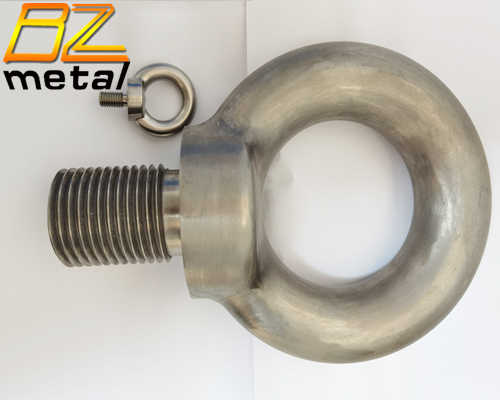

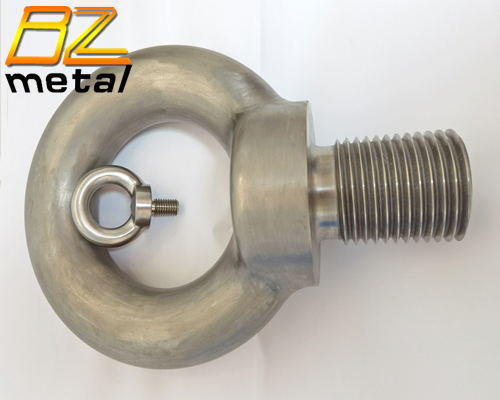

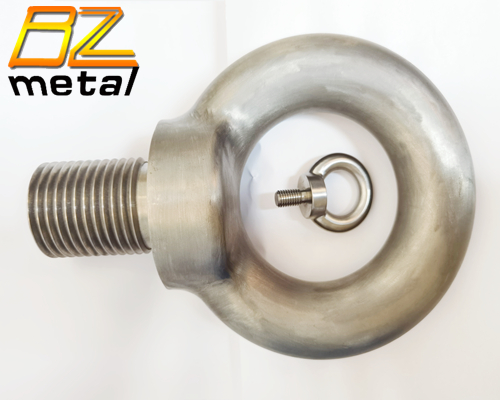

Titanium Alloy Lifting Eye Bolts with high quality very competitive price, and quick delivery, size varieties from M6 to M64, all produced by CNC Machined, size over M32 will be forged first, then machined by CNC center, welcome to inquiry and order.
Inquiry
Product Name | High Quality Titanium Alloy Eye Bolt by CNC Machined |
| Material | Titanium Grade 2, Titanium Grade 5, etc |
| Avaliable Size | M4 to M64 |
| Standard | DIN 580, or According to Customer's Own Design |
| Producing Method | CNC Machined |
| Application | Lifting Heavy Goods, Connect with An Eye Nut to Lift Goods |

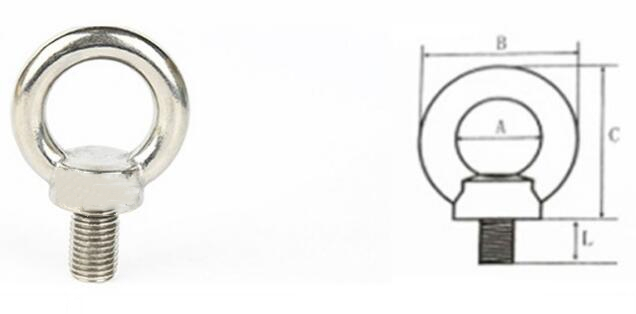

| Specification | Dimension(mm) | ||||
| A (mm) | B (mm) | C (mm) | L (mm) | Unit Weight (g) | |
| M4 | 11.00 | 19.60 | 20.00 | 12.00 | 3.30 |
| M5 | 13.40 | 23.00 | 23.60 | 11.00 | 7.00 |
| M6 | 16.00 | 27.00 | 30.00 | 11.00 | 13.00 |
| M8 | 20.00 | 34.60 | 32.20 | 18.00 | 26.00 |
| M10 | 25.50 | 43.00 | 43.25 | 18.00 | 41.00 |
| M12 | 30.00 | 51.00 | 51.00 | 20.00 | 72.00 |
| M14 | 30.00 | 51.00 | 54.00 | 23.80 | 82.00 |
| M16 | 35.00 | 60.00 | 62.00 | 24.40 | 128.00 |
| M18 | 37.00 | 65.30 | 67.30 | 30.00 | 142.00 |
| M20 | 41.00 | 70.00 | 73.00 | 30.00 | 220.00 |
| M24 | 43.00 | 80.00 | 76.00 | 40.00 | 355.00 |
| M30 | 53.00 | 96.00 | 98.00 | 43.00 | ... |
1. Original Package or Netural Package;
2. According to Client's Requests;
3. Carton Box inside and Plywood Box Outside;
4. Shipping in 10 - 15 days after order confirmed.
