Product Introduction
1.Material: Gr5 titanium
2.Usage: Motorcycle
3.Weight: 1032g/Set
4.OEM: Accept
5.MOQ: 1 Set
6.Delivery Time: 15-30 Days
7.For more details, feel free to contact us.

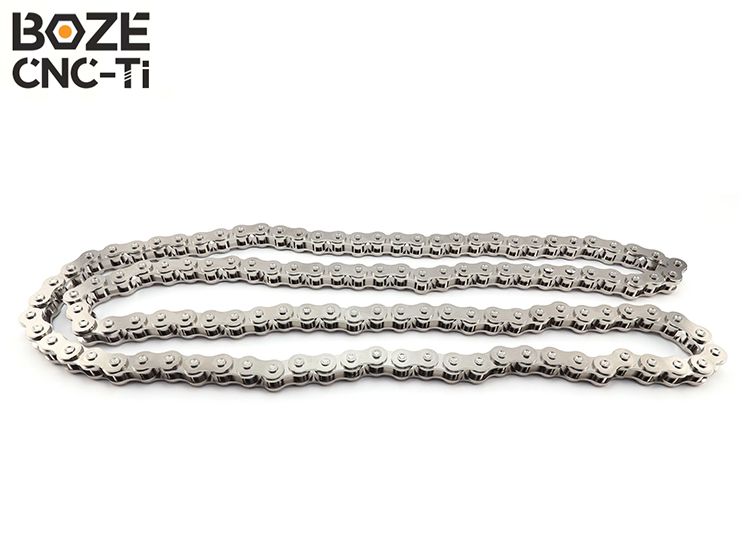

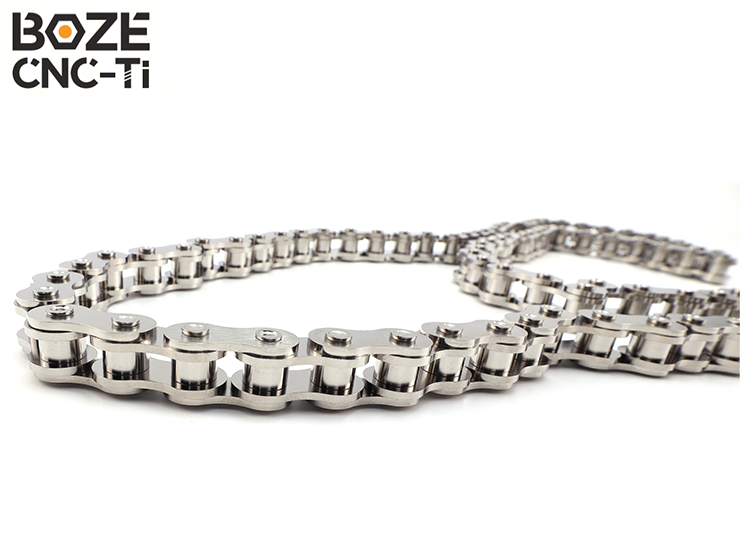

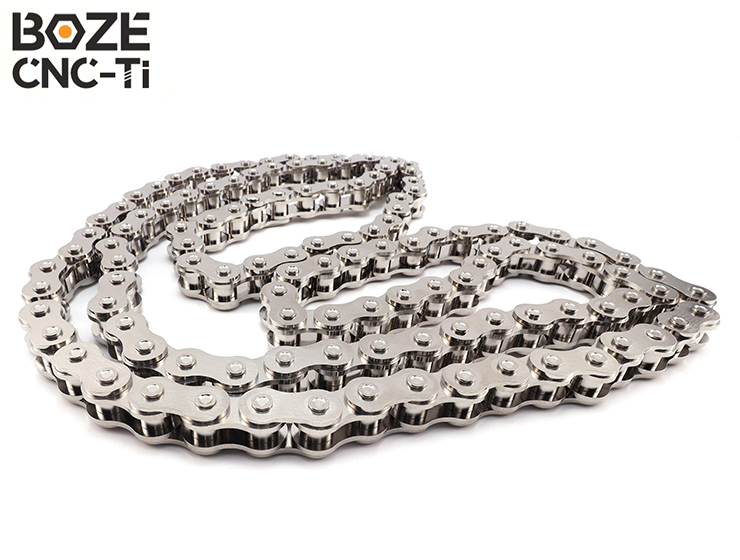

Made of high quality titanium alloy, this 520 Chain offering exceptional durability, lightweight construction, and superior strength. It is ideal for riders seeking enhanced power transmission, reduced rotational mass, and long-lasting reliability under demanding conditions.
Titanium Alloy Chain Parameters
| BOZE Chain No. | Pitch | Roller Diameter | Width between Inner Plates | Pin Diameter | Pin Length | Inner Plate Depth | Plate Thickness | Ultimate Tensile Strength | Average Tensile Strength | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T max | Q min | Qo | |
| 420 | 12.7 | 7.77 | 6.25 | 3.96 | 14.7 | 16.1 | 12 | 1.5 | 16.00/3636 | 18.1 |
| 428 | 12.7 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 1.6 | 18/4091 | 20.1 |
| 428H | 12.7 | 8.51 | 7.85 | 4.45 | 18.8 | 19.9 | 11.8 | 2.03 | 20.6/4682 | 23.4 |
| 520 | 15.875 | 10.16 | 6.25 | 5.08 | 17.5 | 19 | 15.09 | 2.03 | 26.5/6022 | 29.7 |
| 520H | 15.875 | 10.16 | 6.25 | 5.08 | 19.3 | 20.8 | 15.09 | 2.42 | 26.5/6022 | 31.5 |
| 525 | 15.875 | 10.16 | 7.95 | 5.08 | 19.3 | 20.7 | 15.09 | 2.03 | 26.5/6022 | 29.9 |
| 525H | 15.875 | 10.16 | 7.95 | 5.08 | 20.9 | 22.3 | 15.09 | 2.42 | 30.00/6022 | 32.2 |
| 530 | 15.875 | 10.16 | 9.4 | 5.08 | 20.7 | 22.2 | 15.09 | 2.03 | 26.5/6022 | 29.7 |
| 530SH | 15.875 | 10.16 | 9.4 | 5.08 | 22.1 | 15.09 | 2.42 | 32.80/7379 | 33.5 | |
• It fits for most of the motorcycles, dirt bikes and ATVs.
• This chain is long enough to fit all full size dirt bikes that require a 520 series chain.
• If you need it shorter, we can cut it down to the length you need!
• Weight Savings: Titanium chains weigh up to 40% less than steel one.
• Corrosion Resistance: Perfect for most extreme riding conditions.
• Low Maintenance: The longevity reduces the need for frequent replacements and minimises maintenance costs.
